As research into 6G wireless communication accelerates and advanced electromagnetic systems evolve, the industry is rapidly transitioning beyond FR2 into the newly designated FR3 spectrum (typically spanning Sub-7 GHz to 24 GHz). In this uncharted frequency territory, achieving mere frequency coverage is no longer the ultimate goal; the true engineering challenge lies in ensuring absolute phase synchronization across multiple channels.

Traditional test configurations often struggle with independent frequency conversions, which introduce unpredictable phase drifts between channels. To eliminate this critical hardware instability and safeguard signal integrity, TMYTEK, in collaboration with NI (National Instruments), has introduced the 6G-Ready FR3 Multi-Channel Phase-Coherent Testbed. By seamlessly bridging baseband processing with microwave frequencies, this platform sets the "Gold Standard" for phase-coherent research and development.

Why Phase Coherency Matters in Multi-Channel Systems

Modern applications—ranging from Massive MIMO beamforming to electronic warfare—rely heavily on the precise spatial distribution of signals. However, when up-converting or down-converting signals across multiple channels, independent Local Oscillators (LOs) naturally experience phase drift relative to one another.

This hardware-level phase variation introduces significant obstacles:

• Degraded Beamforming Accuracy: Preventing precise control over signal constructive interference.
• Reduced Sensing Resolution: Causing location and target identification errors in Integrated Sensing and Communication (ISAC) or radar systems.

To mitigate these variables, researchers require a robust 4T4R (or higher) validation environment that guarantees a rigid, stable phase relationship across all channels at the hardware layer.

The Solution: Hardware-Level LO Synchronization Architecture

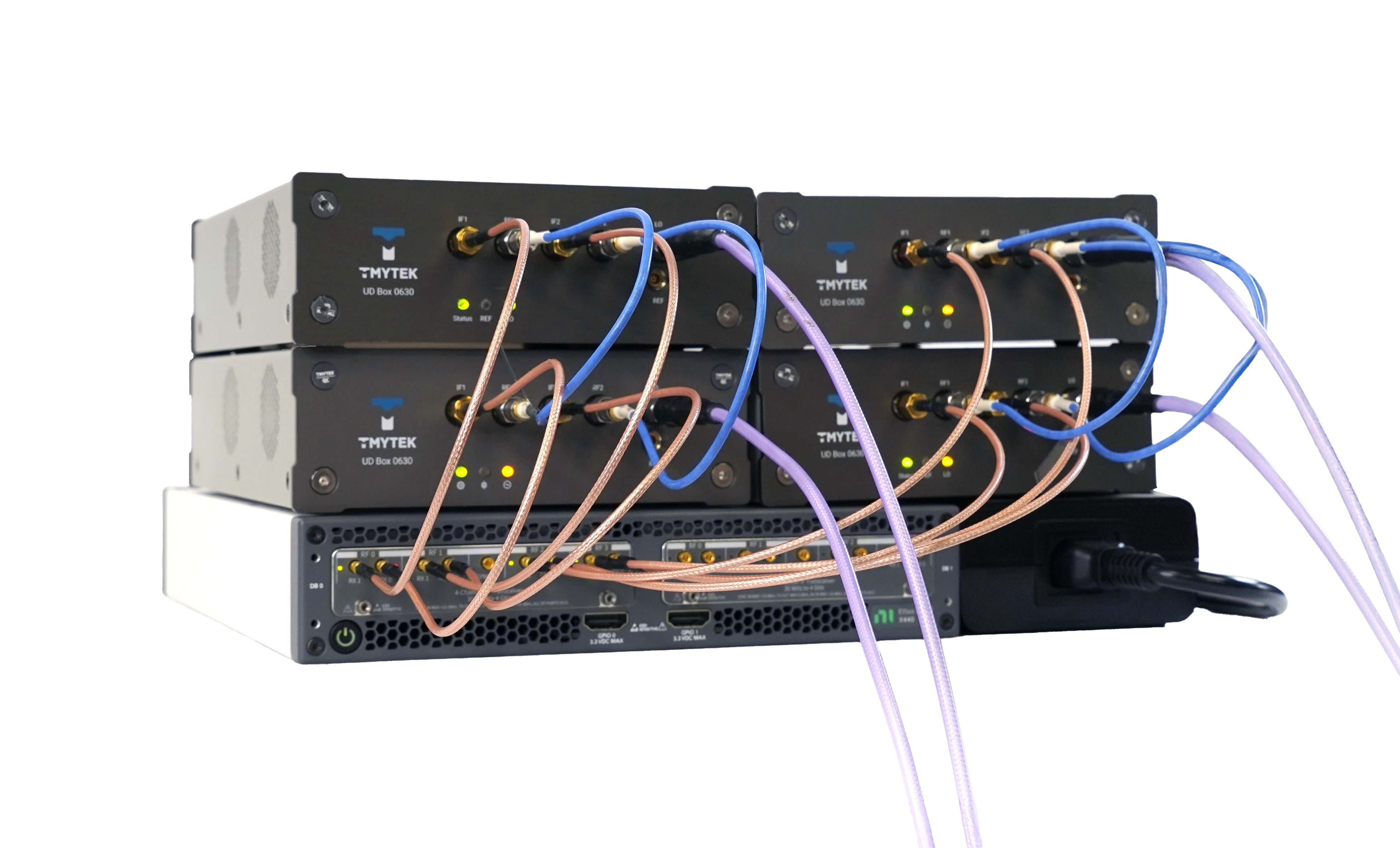

To address these pain points, the platform physically locks the Local Oscillators across all RF units. By integrating the TMYTEK UD Box 0630 up/down-converters with the NI Ettus USRP X440 baseband processor, the system creates a fully synchronized ecosystem.

Key Technical Advantages:

• Hardware-Level LO Synchronization: Eliminates the phase drift inherent in independent frequency conversion by physically locking the LO source across all channels.
• Extreme Phase Coherency: Specifically optimized for phase-sensitive applications, keeping inter-channel phase deviation consistently below $0.01rad across the entire operation band.
• Massive Bandwidth & Extended Frequency: Native support for both FR3 and FR2 spectrums, meticulously designed to accommodate the ultra-wide bandwidth requirements of 6G waveforms.

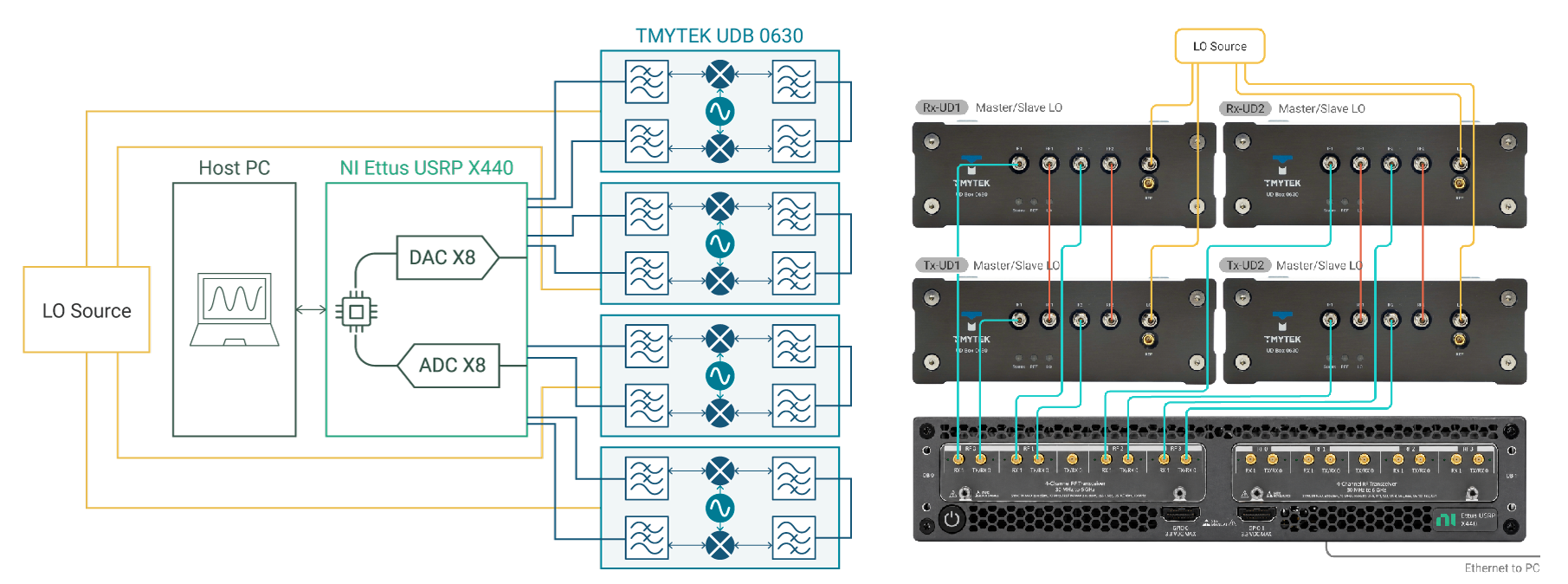

System Configuration and Signal Flow

The physical architecture ensures that the intermediate frequency (IF) and control links are completely aligned through a centralized LO source.

Experimental Proof: Loopback vs. Real-World Performance

To prove the platform’s exceptional stability when moving from IF baseband to high-frequency RF, rigorous loopback and over-the-air testing were conducted. The empirical data demonstrates industry-leading precision:

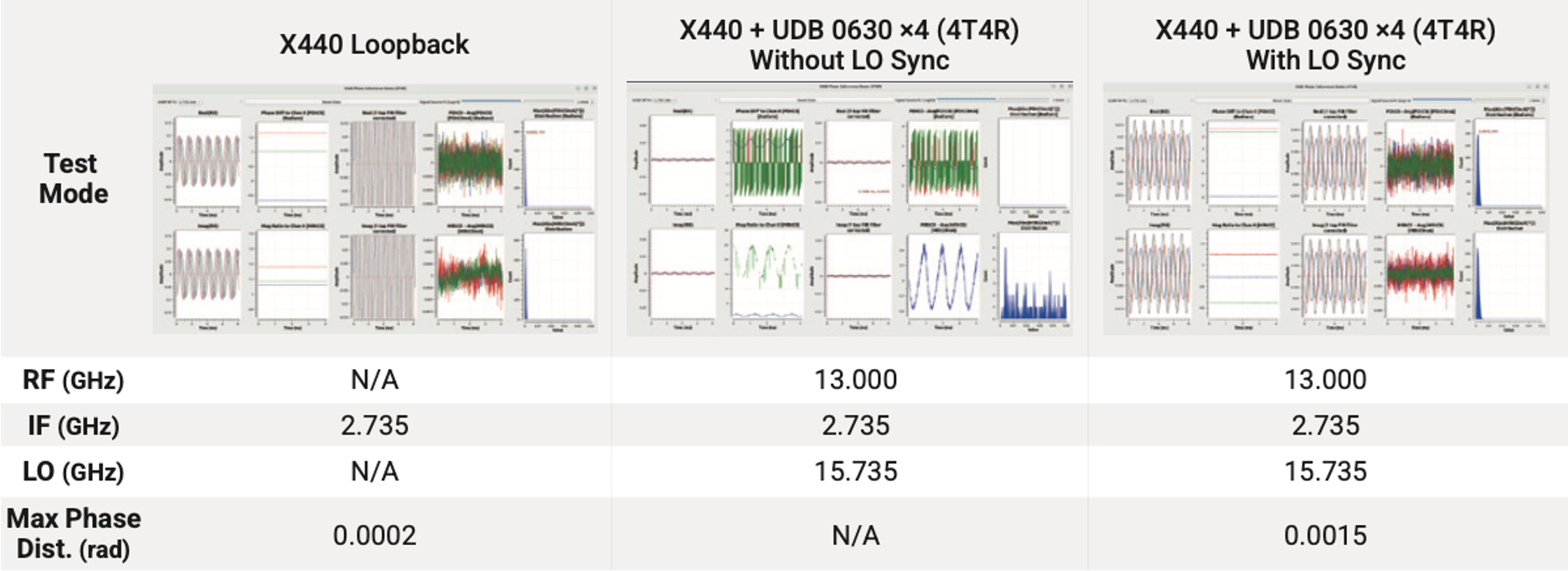

Experimental Data Comparison

Technical Insight: As shown in the results, without LO synchronization, inter-channel phase drift makes consistent measurement impossible. However, when Hardware-Level LO Sync is enabled, the maximum phase deviation is strictly maintained at an ultra-low 0.0015 rad—well below the mission-critical threshold of 0.01 rad. This ensures a highly reliable, repeatable, and precise testing environment.

Target Applications and Use Cases

This meticulously calibrated ecosystem removes the variables of hardware instability, empowering pioneers across four critical domains:

1. 6G Wireless Communication Research Excellent for waveform innovation and Massive MIMO pre-coding validation. It provides the phase-stable foundation required to accurately test ISAC architectures where time-of-flight and phase alignment are paramount.

Learn more about our 6G mmW SDR Spectrum Solutions. >

2. Defense & Electronic Warfare (EW) Crucial for high-precision Direction Finding via Angle of Arrival (AoA) and coherent radar emulation. The platform's tight phase constraints enable accurate, repeatable testing for synchronized Electronic Countermeasure (ECM) tactics.

View our RF Up/Down Converter Portfolio for advanced radar validation. >

3. Satellite Communications (Satcom) & NTN Ideal for LEO/MEO constellation link emulation and multi-beam ground station synchronization. Its broad frequency coverage allows developers to confidently execute NTN verification under dynamic, phase-shifting conditions.

4. High-Resolution Radar Sensing Utilizes ultra-wide bandwidths to achieve precision imaging and target identification. Minimizing the system's internal phase noise directly translates to sharper radar cross-section resolutions and superior algorithm training environments.

Conclusion

The TMYTEK and NI FR3 Multi-Channel Testbed is more than a collection of high-spec hardware; it is an engineered answer to the challenges of high-frequency synchronization. By eliminating hardware-induced phase variables from the equation, it delivers the reliable and repeatable environment necessary to pioneer the next generation of communication and defense technologies.
